Simplifying GLB files for use in Unity

5 min readFeb 21, 2023

GLB file format is convenient as it contains all the files required for rendering including the textures. However, depending on the usage you may want to simplify the file as it is sometimes very detailed.

In this article, I will use gltf-transform to perform the simplification and I will assume you are using Windows.

Installation

To install gltf-transform, you need Node.js. Node.js is a JavaScript runtime environment used by many websites and tools. You can download it from https://nodejs.org/en/. Unless you have a specific need, use the LTS version.

During the installation, accept the defaults as they will be sufficient for what we are doing.

Now, we need to install the tool itself, open a terminal and type:

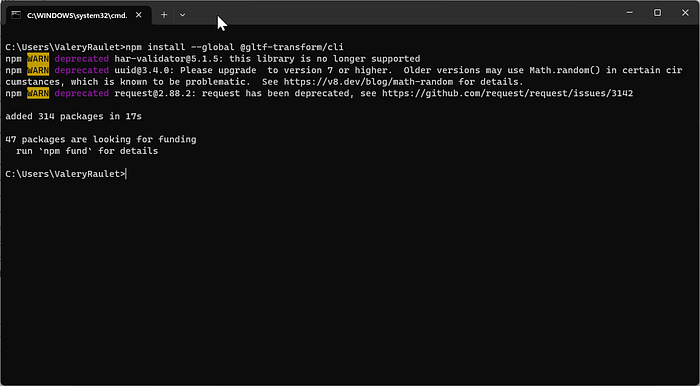

npm install --global @gltf-transform/cli

If you get warnings, it should be safe to ignore those.

Inspecting a GLB file

The first action is to inspect the GLB file by typing the following:

C:\pumpkin>gltf-transform inspect file.glb

You will get detailed information about the content of the GLB file such as meshes and textures:


 MESHES
 ────────────────────────────────────────────
┌───┬────────────┬───────────┬────────────┬──────────────┬──────────┬─────────┬──────────────────────────────────────────┬───────────┬───────────┐
│ # │ name       │ mode      │ primitives │ glPrimitives │ vertices │ indices │ attributes                               │ instances │ size¹     │
├───┼────────────┼───────────┼────────────┼──────────────┼──────────┼─────────┼──────────────────────────────────────────┼───────────┼───────────┤
│ 0 │ Circle     │ TRIANGLES │ 1          │ 21,496       │ 11,916   │ u16     │ NORMAL:f32, POSITION:f32, TEXCOORD_0:f32 │ 1         │ 510.29 KB │
├───┼────────────┼───────────┼────────────┼──────────────┼──────────┼─────────┼──────────────────────────────────────────┼───────────┼───────────┤
│ 1 │ Circle.001 │ TRIANGLES │ 1          │ 10,400       │ 5,560    │ u16     │ NORMAL:f32, POSITION:f32, TEXCOORD_0:f32 │ 1         │ 240.32 KB │
├───┼────────────┼───────────┼────────────┼──────────────┼──────────┼─────────┼──────────────────────────────────────────┼───────────┼───────────┤
│ 2 │ Circle.003 │ TRIANGLES │ 1          │ 8,040        │ 4,207    │ u16     │ NORMAL:f32, POSITION:f32, TEXCOORD_0:f32 │ 1         │ 182.86 KB │
└───┴────────────┴───────────┴────────────┴──────────────┴──────────┴─────────┴──────────────────────────────────────────┴───────────┴───────────┘

 TEXTURES
 ────────────────────────────────────────────
┌───┬────────────────────────────────────────────┬─────┬──────────────────────────┬───────────┬───────────┬─────────────┬────────────┬──────────┬──────────┐
│ # │ name                                       │ uri │ slots                    │ instances │ mimeType  │ compression │ resolution │ size     │ gpuSize¹ │
├───┼────────────────────────────────────────────┼─────┼──────────────────────────┼───────────┼───────────┼─────────────┼────────────┼──────────┼──────────┤
│ 0 │ pumpkin_Normal                             │     │ normalTexture            │ 2         │ image/png │             │ 4096x4096  │ 15.3 MB  │ 89.48 MB │
├───┼────────────────────────────────────────────┼─────┼──────────────────────────┼───────────┼───────────┼─────────────┼────────────┼──────────┼──────────┤
│ 1 │ pumpkin_Base_Color                         │     │ baseColorTexture         │ 2         │ image/png │             │ 4096x4096  │ 19.78 MB │ 89.48 MB │
├───┼────────────────────────────────────────────┼─────┼──────────────────────────┼───────────┼───────────┼─────────────┼────────────┼──────────┼──────────┤
│ 2 │ pumpkin_Metallic-pumpkin_Roughness         │     │ metallicRoughnessTexture │ 1         │ image/png │             │ 4096x4096  │ 19.32 MB │ 89.48 MB │
├───┼────────────────────────────────────────────┼─────┼──────────────────────────┼───────────┼───────────┼─────────────┼────────────┼──────────┼──────────┤
│ 3 │ pumpkin_Metallic.png-pumpkin_Roughness.png │     │ metallicRoughnessTexture │ 1         │ image/png │             │ 4096x4096  │ 19.32 MB │ 89.48 MB │
└───┴────────────────────────────────────────────┴─────┴──────────────────────────┴───────────┴───────────┴─────────────┴────────────┴──────────┴──────────┘

In this example, we have 3 meshes with 11,916, 5,560, and 4,207 vertices. We also have 4 texture images with a resolution of 4096x4096 with a total size of more than 70 MB.

Resize GLB Textures

I don’t need such a detailed texture so I am going to resize its texture files:

C:\pumpkin>gltf-transform resize --width 1024 --height 1024 file.glb file2.glb
info: file.glb (74.65 MB) → file2.glb (6.35 MB)

Here, I decide to use a resolution of 1024x1024 which is more than enough for my need. That means a 8-time reduction in resolution.

Note that the resulting file is more than 10 times smaller (6.25 MB vs 74.65 MB).

Simplify GLB Mesh

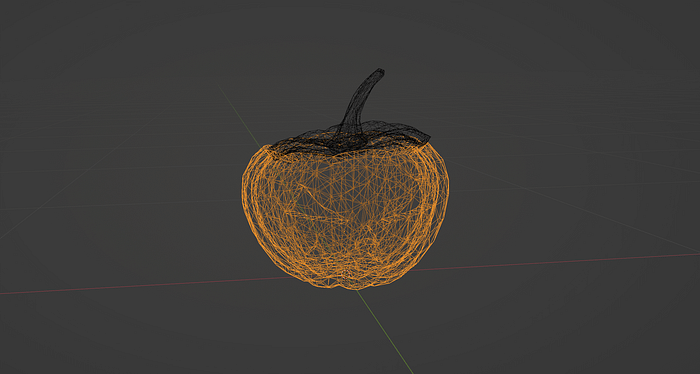

With more than 21,000 vertices, this object is too detailed for my use. So, I also want to simplify the mesh:

C:\pumpkin>gltf-transform simplify --ratio 0.25 file2.glb file3.glb
info: file2.glb (6.35 MB) → file3.glb (5.8 MB)

The ratio parameter allows being more or less aggressive in the removal of vertices:

C:\pumpkin>gltf-transform inspect file3.glb

 MESHES
 ────────────────────────────────────────────
┌───┬────────────┬───────────┬────────────┬──────────────┬──────────┬─────────┬──────────────────────────────────────────┬───────────┬───────────┐
│ # │ name       │ mode      │ primitives │ glPrimitives │ vertices │ indices │ attributes                               │ instances │ size¹     │
├───┼────────────┼───────────┼────────────┼──────────────┼──────────┼─────────┼──────────────────────────────────────────┼───────────┼───────────┤
│ 0 │ Circle     │ TRIANGLES │ 1          │ 9,614        │ 5,550    │ u16     │ NORMAL:f32, POSITION:f32, TEXCOORD_0:f32 │ 1         │ 235.28 KB │
├───┼────────────┼───────────┼────────────┼──────────────┼──────────┼─────────┼──────────────────────────────────────────┼───────────┼───────────┤
│ 1 │ Circle.001 │ TRIANGLES │ 1          │ 3,260        │ 1,886    │ u16     │ NORMAL:f32, POSITION:f32, TEXCOORD_0:f32 │ 1         │ 79.91 KB  │
├───┼────────────┼───────────┼────────────┼──────────────┼──────────┼─────────┼──────────────────────────────────────────┼───────────┼───────────┤
│ 2 │ Circle.003 │ TRIANGLES │ 1          │ 2,874        │ 1,543    │ u16     │ NORMAL:f32, POSITION:f32, TEXCOORD_0:f32 │ 1         │ 66.62 KB  │
└───┴────────────┴───────────┴────────────┴──────────────┴──────────┴─────────┴──────────────────────────────────────────┴───────────┴───────────┘

It is based on meshoptimizer and you can get more information here:

meshoptimizer/README.md at master · zeux/meshoptimizer

Mesh optimization library that makes meshes smaller and faster to render - meshoptimizer/README.md at master ·…

github.com

Other Functions

There are many other functions available with gltf-transform. You can get the list of functions here:

CLI | glTF-Transform

Documentation for CLI in glTF-Transform, a glTF 2.0 SDK for JavaScript, TypeScript, and Node.js.

gltf-transform.donmccurdy.com

And for any function, you can use the --help parameter to get the list of available parameters:

C:\pumpkin>gltf-transform simplify --help

  cli.js 3.0.1 — Command-line interface (CLI) for the glTF Transform SDK.

  USAGE — simplify

    ▸ cli.js simplify <input> <output> [OPTIONS...]


  Simplify mesh, reducing number of vertices.

  Simplification algorithm producing meshes with fewer triangles and
  vertices. Simplification is lossy, but the algorithm aims to
  preserve visual quality as much as possible, for given parameters.

  The algorithm aims to reach the target --ratio, while minimizing error. If
  error exceeds the specified --error threshold, the algorithm will quit
  before reaching the target ratio. Examples:

  - ratio=0.5, error=0.001: Aims for 50% simplification, constrained to 0.1% error.
  - ratio=0.5, error=1: Aims for 50% simplification, unconstrained by error.
  - ratio=0.0, error=0.01: Aims for maximum simplification, constrained to 1% error.

  Topology, particularly split vertices, will also limit the simplifier. For
  best results, apply a 'weld' operation before simplification.

  Based on the meshoptimizer library (https://github.com/zeux/meshoptimizer).


  ARGUMENTS

    <input>                              Path to read glTF 2.0 (.glb, .gltf) model
    <output>                             Path to write output

  OPTIONS

    --error <error>                      Limit on error, as a fraction of mesh radius
                                         number, default: 0.001
    --lock-border <lockBorder>           Whether to lock topological borders of the mesh
                                         boolean
    --ratio <ratio>                      Target ratio (0–1) of vertices to keep
                                         number, default: 0.5

Result

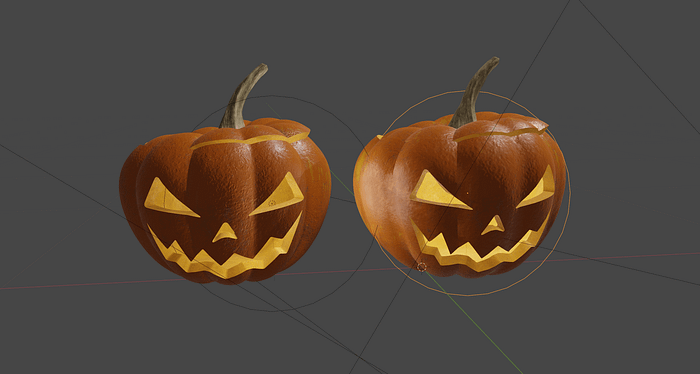

We can see a loss of details in the result but obviously, it depends on how you want to use your GLB file:
